Corrugator Belts

Woven Corrugator Belt

Description Inquire

Woven Corrugator Belt Product Description
The corrugator belts with silicone coating belt is specially designed to improve pulling and wear resistance on belt board side. Its excellent silicone coating on board side prevents any risk of slippage on difficult board (coated board/white board) or heavy board.

Corrugator Belts with Silicone Coating Technical Parameters

Product	High Speed Corrugator Belt
Thickness	8mm, 9mm, 10mm
Width Range	1400mm - 3200mm
Length	80 meters
Heat-resistance	240℃, the Krvalr edge up to 350℃
Tensile Strength	70Mpa
Coefficient of friction	≥0.40µ
Weight per unit	(7.5±0.3)kg/m2
Air-permeability 40mm water Column	2.0m³/m2/min

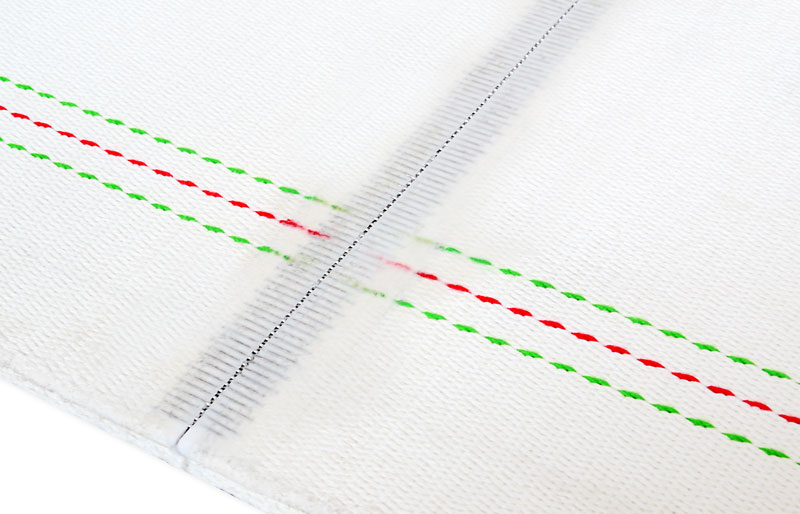

Seam	Hot Jaw Lacing / Clipper with rubber coated
Edge	100mm -400mm inwoven aramid edge reinforcement (kevlar)
Suitable position	Top belt, Bottom belt, Upper belt, Lower belt
