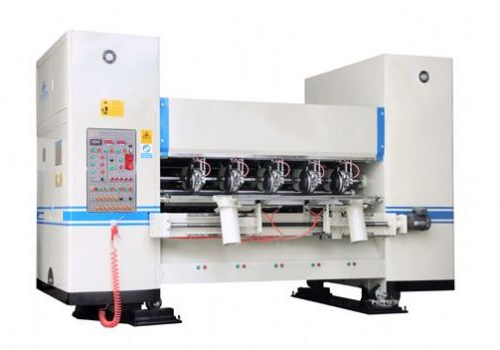

NC Slitter Scorer

SLITTER SCORER AVAILABLE BREADTH: 1400-2200MM

Slitting capacity:
-- 3 outs (slitting tool: 4 sets, scoring tool: 6 sets),
-- 4 outs (slitting tool: 5 sets, scoring tool: 8 sets),
-- 5 outs (slitting tool: 6 sets, scoring tool: 10 sets)

Slitting linear velocity: 630-900m/min

NC Slitter Scorer Advantage
① The outside diameter of the slitting tool: 260 mm (thin blade),
     the diameter of the scoring tool: 190 mm,
     minimum slitting size: 150 mm
② Minimum scoring size: there are three scoring modes: male to female, male-to-male, and male to flat for optional
③ Slitting and scoring size are adjusted by an electric motor. maximum setting: 8 seconds
④ With a 5.5 kW motor for scoring tool and a 7.5 kW motor for slitter, synchronously running with double backer when connected
⑤ The machine can move right or left which controlled by an electric motor
⑥ The adjustment for upper slitting and scoring tools is controlled by a pneumatic system and orders can be easily changed during the machine running without stopping it
⑦ Auto grinding and lubricating to make blades avoid of disassemble and stained when lubricating.

NC Slitter Scorer Specification
