Fanfold Corrugated Box Making Machine

Description Send an Inquiry

Product Description

The Fanfold Corrugated Box Making Machine is available for use with up to 6 different Z-cardboard types to produce corrugated boxes, with multi-function capabilities: slotting, scoring, creasing, slitting, and trimming, all processed in one compact machine.

Technical Specification

Fanfold Corrugated Box Making Machine HT 2800
Available Cardboard Type	Fanfold Cardboard (3 / 5 / 7 Ply)
Available Cardboard Thickness	1.5-10mm (E / B / C / AB/ BC / BE / BCE flute)
Cardboard Density Range	≤1350g/㎡
Max. Board Size	2800mm(W) x unlimited(L)
Min. Board Size	500mm(W) x 650mm(L)
Changeover Time	1-5 Seconds
Accuracy	±2mm
Box Styles	50+
Production Speed (Same Dimension)	6-12pcs/min
Production Speed (Different Dimension)	3-6pcs/min
Vertical Creasing Wheels	6
Vertical Slitting Knives	6
Horizontal Cutting Knives	1
Power Supply	380V±10%, Max.5.5kW, 50/60Hz
Air Supply	0.6-0.7 MPa, Air Consumption 70L/min
Dimension	3700(W) x 1200(L) x 2030mm(H)
Gross Weight	Appr. 3100kg
Corrugated Bales	1-6
Box making machine with six z-cardboard stacks size	14.5m3.7m2.9m
Box making machine size	3.7m1.2m1.78m

Main Advantages

1. Changeover within 5 seconds
2. More than 50 box styles
3. 7 mm slotting, slitting
4. Process box thickness minimum of 20 mm

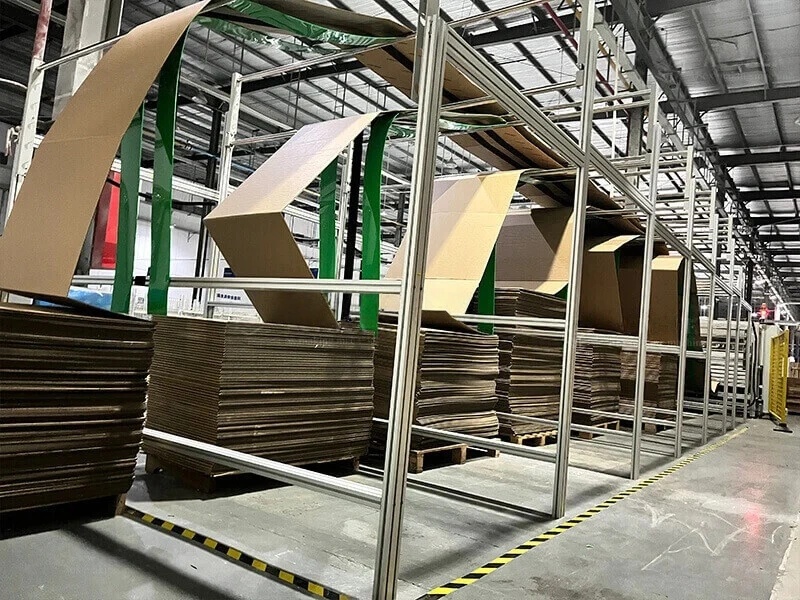

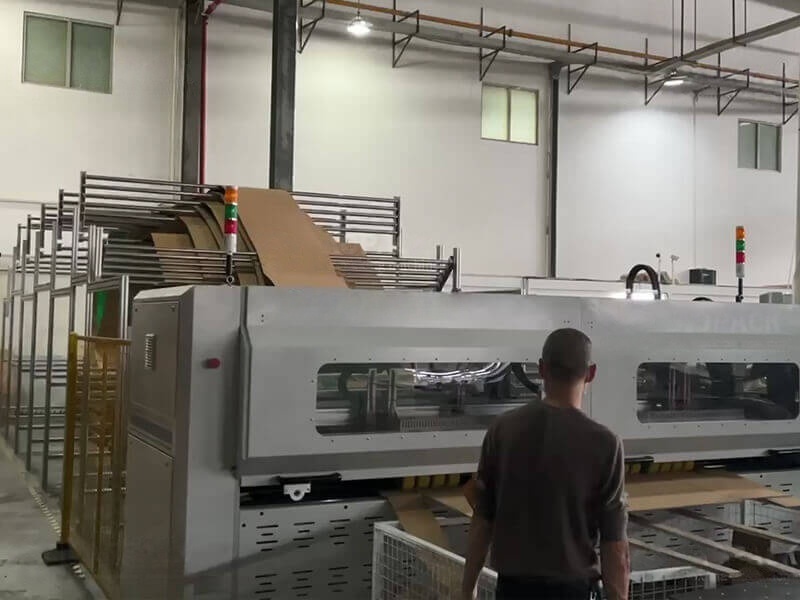

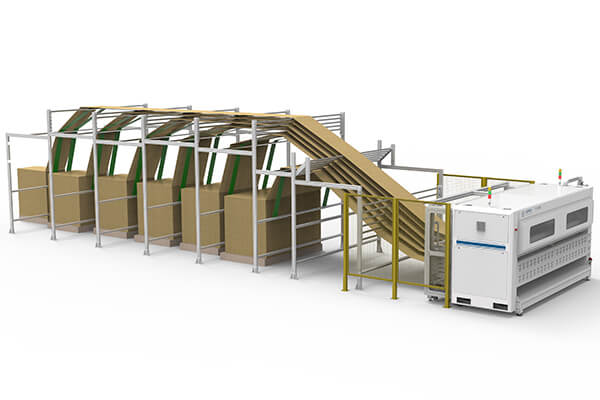

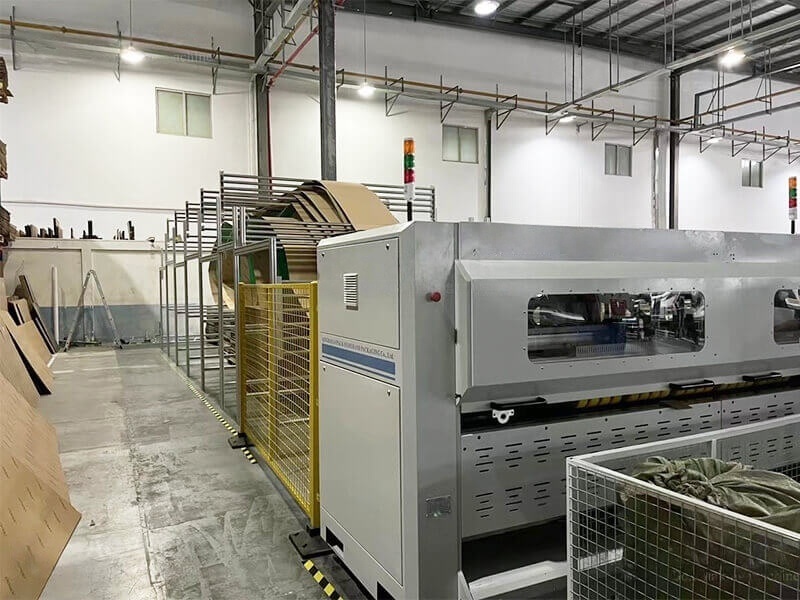

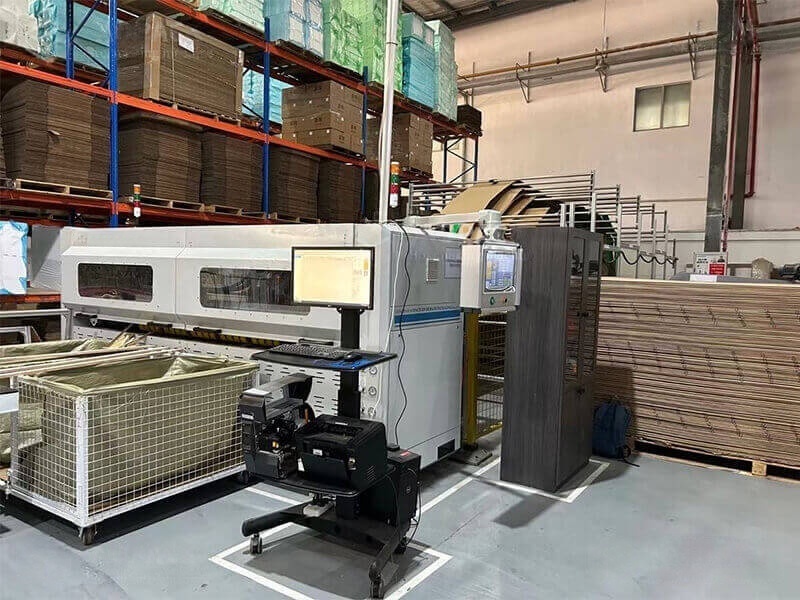

Product Photos
