Mill Roll Stand

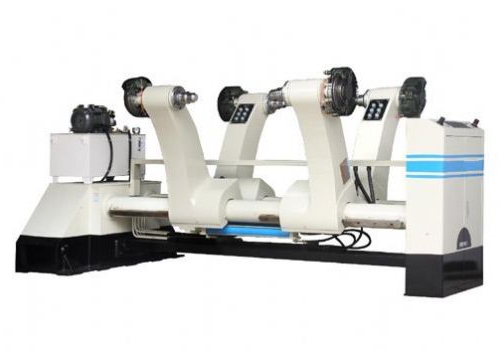

Hydraulic Mill Roll Stand

Hydraulic Mill Roll Stand Description
Hydraulic Mill Roll Stand/Corrugated Cardboard Mill Roll Stand/Paperboard Mill Roll Stand: Symmetrical structure, can carry two craft paper at one time, which can work without brake.

Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft/reel paper quickly.

Hydraulic Mill Roll Stand Parameters

Mill Roll Stand Parameters
Max. Paper Roll Dia	φ1500mm
Effective Width	900mm - 2200mm
Maximum Support Weight	3T
Main Axis	φ242mm
Pneumatic Source Pressure(Mpa)	0.4 - 0.8Mpa
Magnetic Valve Voltage	380V 50HZ
Working Pressure (mpa)	16-18mpa
Mill Roll Stand Characteristics
The Structure is Double Rotary Shafts with Four Arms
Support Two Paper Mill Rolls on both Arms at the Same Time
Hydraulic Control for Paper Mill Roller Up-down, Clamp-open, and Centering
Web Tension Controlled by Pneumatic Brake or Manual Brake
Tapered Center, Stretch Center, and Springiness Chucks are Optional
