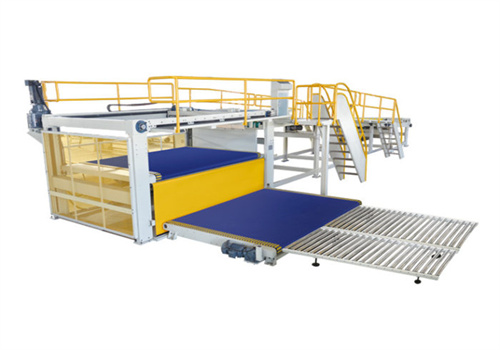

Automatic Stacker

Automatic Stacker available breadth: 1400-2200mm

Automatic Stacker Specification
- Frequency conversion motor auto down stacker
- Applicable to be a production line whose max speed is 180m/min
- Max sheet length: 3500mm
- max stacking height: 1500mm

Automatic Stacker Advantage
Connected with the production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself Stacking of multi orders.

The conveyer belt was separated to be 4 sections, driven by an ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which makes the paper board stack in good order.

The transducer controls the frequency conversion motor to drive the roller running, speed up and down stably, the board comes out easily, hard to be overturned.

Transducer controls the brake motor to drive the elevator, with counterbalance, speed up and down stably, speed counterchanges reasonably, make stacking freer and get rid of the paper board crease, improved the life of the machine.

Rolls forms close and lift with elevator, to reduce the waste

Gross power: 30kw
