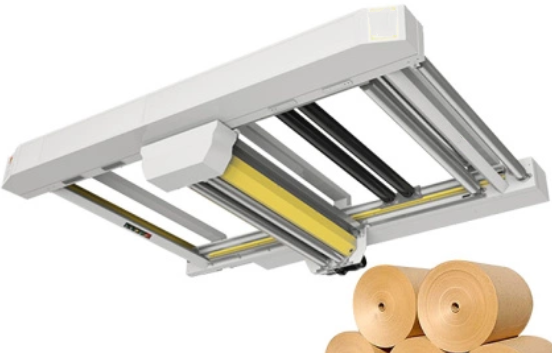

Corrugated Cardboard Machine Auto Splicer

Corrugated Cardboard Machine Auto Splicer Description
The Auto Splicer functions as a central element for smooth, continuous operation, fast, and helps to increase production output and save production cost during the corrugated cardboard production process.

Corrugated Cardboard Machine Auto Splicer Function
1. No paper tail connecting, reduce the loss of the base paper (the overlap of the base paper is about 40mm width).
2. When the paper truck remove, automatically transferred out, vacuum-adsorbed, easy to operate, and fully automatic tension control, paper-connecting zero error.
3. All adopt PLC automatic control.
4. When the buffer wheel pulls for the first time, it's easy to pull and aligned automatically.
5. Collecting paper controlled by cylinder, will not cause broken tile and blistering problems.

Corrugated Cardboard Machine Auto Splicer Specification:

Design Speed	Model 300-280 m/min (Flute Liner) 250m/min (Top Liner) Model 400-380 m/min (Flute Liner) 250m/min (Top Liner)
Paper Connection	Overlap connecting
Design Width	The maximum paper width can reach 2550mm
Weight of the original paper	50g/m2 - 350g/m2
Paper reaction completion time	About 1 second
Gas source	A minimum of 0.6Mpa dry clean air source
Power demand	Power supply: 380V, 50Hz, 20A control power: 12V, 24V
Paper frame brake	pneumatic brake/ magnetic powder brake
