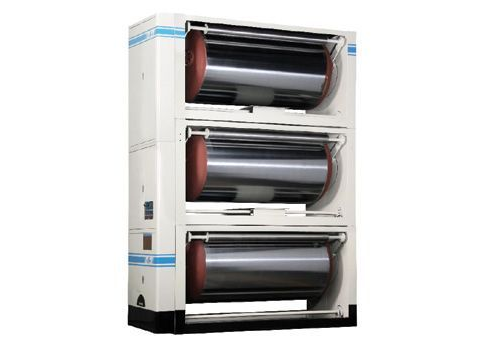

Multi Pre-heater

Multi Pre-heater Description
Multi pre-heater available breadth: 1600-2500mm

Multi Pre-heater Specification

1. Pre-heater diameter1000mm/1100 mm / 1200 mm. butterfly head makes heating equal.

2. Pre-heater designed to be rotary at a fixed speed, which makes the temperature of the surface equal and passes the heat to the paper completely, and also reduces heat loss and makes the paper not easy to be broken off.

3. Flange is used for a steam rotary joint.

4. Made according to a national standard of pressure container I, a test certificate is followed.

5. Paper guide roll: φ140mm, three fixed, the other three travel outside of preheating roll to control the heating surface. the parallelism of the travel paper guide roll can be adjusted

6. With 0.55kw/0.75kw motor and 6 sets of worm wheel decelerator
