Corrugator Belts

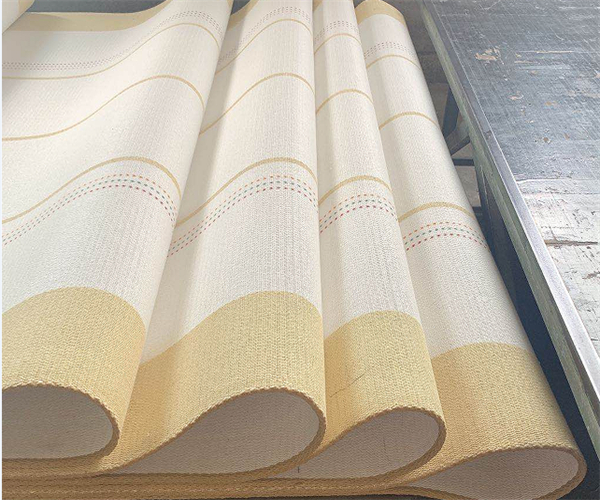

Armoured edges Corrugator Belt

Description Inquire

Corrugator belts Inwoven Aramid Edge is a consistent development based on the proven woven high speed corrugator belt range. Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.

Corrugator belts Inwoven Aramid Edge -Features
Suitable as a top belt with high speed (above 150m/min ) production
Heat and super tear resistance
Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime.
Particularly for frequent changes in board width
Mostly used for all Corrugating Production Lines.

Corrugator belts Inwoven Aramid Edge- Specification

Product	Corrugator Belt Inwoven Aramid Edge
Thickness	8mm - 10mm
Width range	1000mm - 3200mm
Length	80 meters, as requested.
Heat-resistance	240℃ (the kevlar edge up to 350℃)
Tensile strength	70Mpa
Coefficient of friction	≥ 0.40µ
Weight per unit	(7.5±0.3)kg/㎡
Air-permeability 40mm water Column	2.0m³/㎡ min
Seam	Hot JAW lacing/Clipper with rubber coated
Edge	100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position	Top belt
Lifetime	50-70 million meter
Used on all corrugators high tearing resistance Long lifetime running High abrasion resistance Moisture absorption Heat resistance Low noise
