Spray Humidifier System

Spray Humidifier System
Widely used in BHS, HSIEH HISU, TCY, MARQUIP, ISOWA, FORSBER, MINGWEI, K&H, AGNATI, ORANDA, PETERS, J.S., and other China brand machines. The Spray Humidifier System is a product that could Improve the corrugated cardboard quality by spraying water on the paper surface. It can avoid the cardboard up the warp, down warp, cardboard burst, etc problems.

1. High-pressure plunger pump imported from Italy is used for atomization (no compressed air source is needed) with high pressure. Atomized particles are fine and the nozzle is drip-proof. Spray size can be controlled by a frequency converter.
2. The control and operation power supply is 24V safe voltage to ensure the safety of working in a damp environment.
3. Manual automatic switching, automatic stop-stop spray.
4. Nozzle switch is controlled independently.

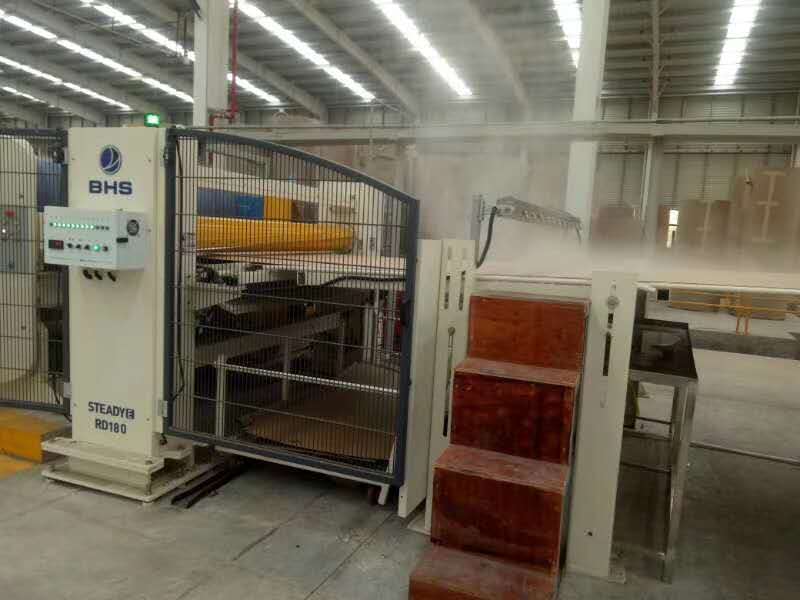

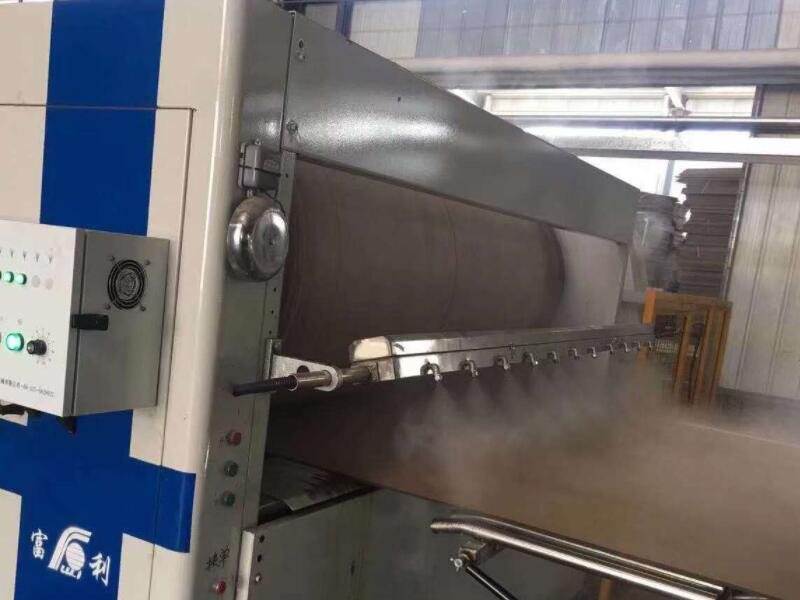

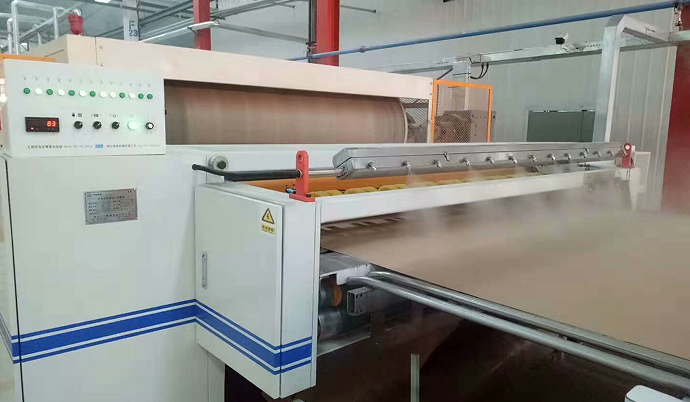

Spray Humidifier System Installed Position
1. Double-facer machine inlet spray paper: before the cardboard forming, replenish the moisture in the paper and solve the problem under the cardboard Bent, paper burst line.
2. Inner side of the spray paper before glue machine (adhesive side): replenish moisture for the surface paper before the cardboard is formed. Solve cardboard warping. Prevent face paper from bursting.
3. Spray surface paper/lining paper before slitter scorer machine: replenish moisture to the cardboard, completely solve the cardboard burst line and delay Long cardboard storage time.
4. Spraying fluting paper at the single facer machine: replenish the moisture of fluting paper, increase the flexibility of corrugated paper, and prevent tile paper due to dryness caused by the broken, poor adhesion phenomenon.
