Corrugating Rolls

Micro Flute Tungsten Corrugating Rolls

Description Inquire

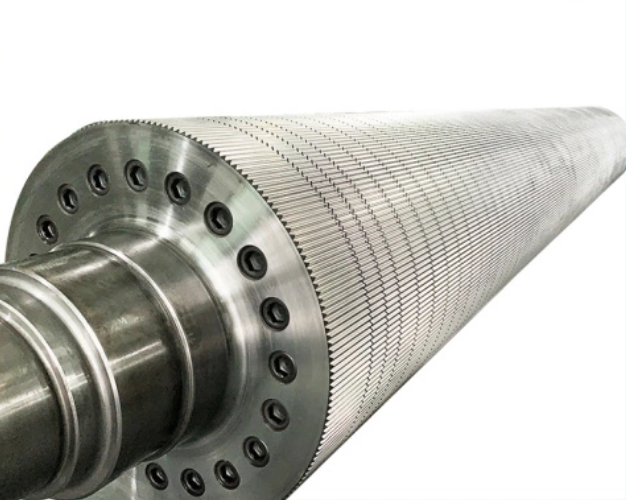

UV shape corrugating rolls Description
UV shape corrugating rolls of single facer machine are highly efficient as they symbolises the most advanced technological development of the Automatic Corrugation Machine Lines. The combination of High Precision Grinding and Cobalt Tungsten Coating enhances the life of the rollers and is economically viable on the production frontier.

UV Shape Corrugating roll Flute Feature
· To break the prejudice that simple coating is only for micro flute
· 300 sets of E flute tungsten coating yearly
· Stable cardboard quality for F & G & N & O flute
· Longer lifetime and lower wastage

Product Parameters of UV Shape Corrugating rolls

Flute Type	Flute	Teeth/300mm	Height Of Flute
A	UV	30±2	4.6-4.9
C	UV	39±3	3.6-3.9
CB	UV	44±2	3.0-3.4
B	UV	50±2	2.6-2.9
BE	UV	66±3	1.9-2.1
E	UV	90±10	1.1-1.5
F	UV	124±10	0.7-0.8
G	UV	185±12	0.5-0.65
N	UV	200±15	0.4-0.5
O	UV	267 or design	0.25-0.35
