Corrugator Belts

Needle Corrugator belt

Description Inquire

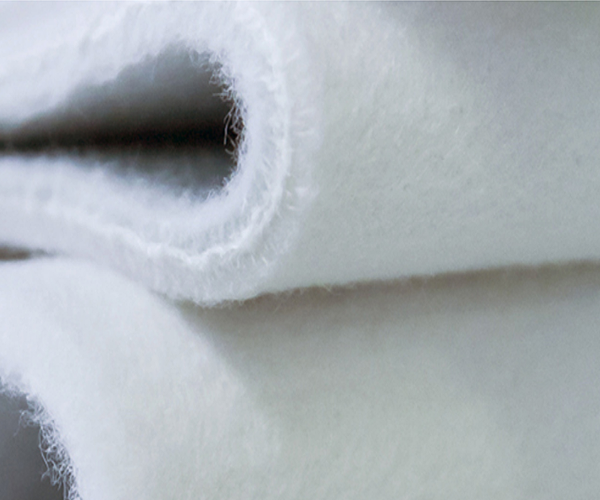

Needle Punched Corrugator Belts Products Description:
Needle Punched Corrugator Belts are produced by professional Needle machine with advanced technology, according to the requirement of Corrugated Cardboard Machine Lines.
It is made of high grade PET fiber & NOMEX fiber to meet the High temperature and high strength, each belt must be Heat-setting and Chemical treatment to guarantee the Stability size.

Needle Punched Corrugator Belt Features
1. High-Temperature Resistance
2. Aging Resistance
3. Even Surface
4. Stable Size
5. Long Lifetime
6. Can produce belts at customers' requests

Needle Punched Corrugator Belt Specification

Product	Needle Punched Corrugator Belt
Thickness	9±0.3mm
Width range	1400mm - 3200mm
Heat-resistance	200℃, Teflon edge 230 ℃
Tensile strength	70Mpa
Coefficient of friction	≥ 0.38µ
Weight	(5.5±0.3)kg/㎡
Air-permeability	4.7 m³/㎡ min
Seam	Concealed joint /AMERICAN FASTENERS
Adjustable rate(weft)	0.8%/180℃
Adjustable rate(warp)	0.42%/180℃
Lifetime	60-90 million meters (or 14000 working hours)
High temperature resistance Aging resistant Even surface Stabilizing size Long life time
